RV Frame Repair Cost: What to Expect in 2026

RV frame repair costs $150 to $400 for a straightforward crack weld from an independent welder, $600 to $1,800 for the same crack reinforced with a welded steel fish plate at a shop, and $1,500 to $5,000 for crossmember sistering or a multi-point structural repair. Severe cases, a rusted-through rail or a broken pin box frame, run $5,000 to $8,000 or more, and a full frame replacement, rare on a towable, starts around $10,000. The number that actually matters isn’t the crack itself. It’s whether the damage is isolated or whether rust has been working through the steel from the inside for years before anyone found it.

Why frame repair pricing swings so wide

Frame damage doesn’t announce itself the way a leaking roof does. Cracks form quietly at stress points, mostly where the A-frame meets the first crossmember or where suspension hangers bolt on, and rust works from the inside of a boxed steel member outward, invisible until a shop pulls the skirting and finds a rail that’s thinner than it should be. That’s why two owners with the same symptom, “my trailer feels like it flexes on rough roads,” can get quotes that differ by 10x.

A trailer welder who specializes in this work quoted $150 for a crack repair near a wheel well on one fiberglass-shell trailer. A different welder, working the same job description, quoted $300 in materials plus six hours at $200 an hour, close to $1,500 all in. Neither quote was wrong. One welder was pricing a straightforward fish-plate weld; the other was pricing diagnostic time to confirm nothing else nearby had started cracking too.

What a single crack actually costs to fix

For an isolated crack with no visible rust spread, the repair method is almost always the same: a welder cuts back to sound steel, fits a fish plate (a flat steel reinforcement piece) over the crack, and welds around the perimeter. Materials for a plate this size run under $50. Labor is what varies.

A “couple hundred bucks” is what one RV forum thread called fair compensation for this exact job. On the higher end, a shop quote for a weld-and-glue repair on a frame separation, a more involved job than a simple crack, took three days and came to $1,700. Location, the welder’s specialty, and whether the shop wants to do a full inspection before touching the crack all move the number inside that range.

Repair scope	Typical cost
Small crack weld, no reinforcement, independent welder	$150-$400
Crack repair with fish plate, welding shop	$600-$1,800
Frame separation, multi-day weld-and-glue repair	$1,500-$3,000
Crossmember or hanger sistering (moderate rust)	$1,500-$5,000
Severe structural failure (broken pin box frame)	$5,000-$8,000
Full frame replacement	$10,000-$15,000+

The Lippert factor

Lippert Components manufactures roughly 70% of American RV frames, which means most travel trailers and fifth wheels on the road are riding on Lippert steel whether the owner knows it or not. The company had a documented quality slide between 2014 and 2019 that it has attributed to poor designs supplied by RV brand customers and inadequate staff training during a period of rapid growth. The result, for owners, has been a real pattern of stress cracks, particularly on units with an east-west bed layout in a slideout, where the frame tends to crack on the front side of the slideout first.

Pin box frames on fifth wheels are a specific known failure point. One dealership diagnosed a broken pin box frame, told the owner it’s a common failure on Lippert-framed trailers, and quoted $8,000 as the best-case repair. That figure sits well above a simple crack weld because a broken pin box usually means the frame itself needs rebuilding at the hitch point, not just a plate welded over a crack.

Lippert’s standard warranty is 1-year limited and explicitly non-transferable, so buying a used RV from someone else, or simply owning one past its first year, puts nearly every frame repair on the owner’s tab. There’s no active manufacturer recall specific to frame flex as of this writing; Lippert’s official position is that flex within their tolerance specifications isn’t a defect, which has been a point of ongoing frustration in owner forums.

When it’s rust, not a crack: sistering a crossmember

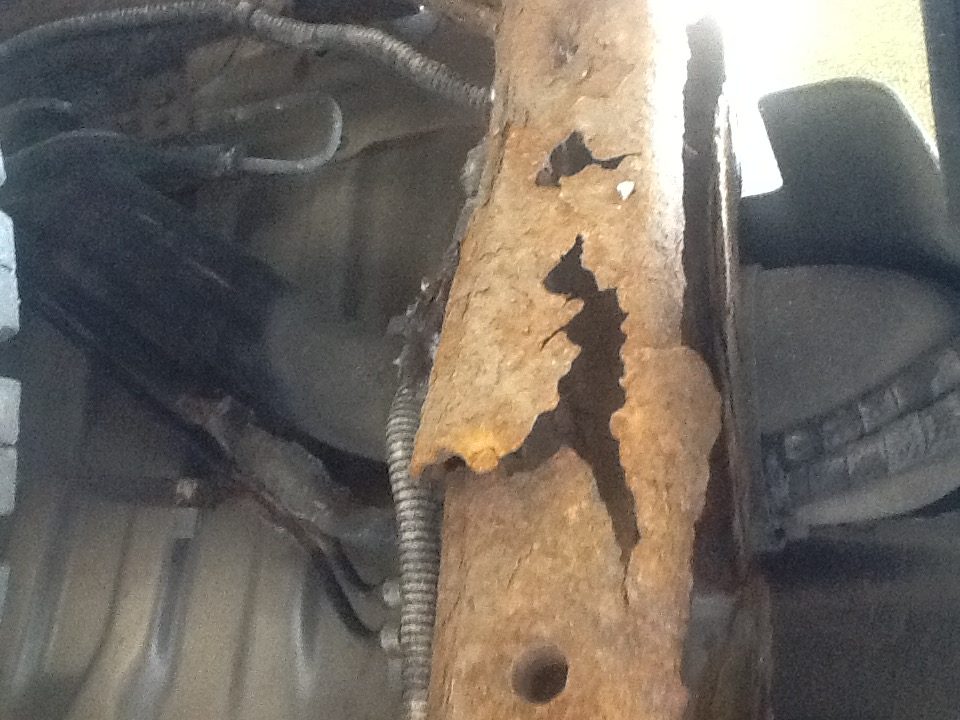

Rust changes the math. A crack is a single point of failure a fish plate can reinforce. Rust that’s eaten through a crossmember or a section of rail means the steel itself has to be replaced, a process shops call sistering, welding new steel alongside or in place of the compromised section.

General crossmember replacement work runs $500 to $1,500 per member in parts and labor on comparable vehicle-frame jobs, and that number scales directly with how many crossmembers are affected. One Airstream restoration project replaced five crossmembers in a single job, which meant lifting the trailer on stands and pulling the belly pan and axles to get at all of them, work that adds real labor hours before the first weld even starts.

Rust severity roughly follows the same tiers seen on light-truck frames, which use comparable C-channel or boxed steel construction: small surface spots run under $100 to address, moderate corrosion averages around $1,500 professionally, and significant rust damage pushes past $5,000. Once rust has eaten all the way through a rail in a given spot, most shops won’t try to weld that section; they’ll cut it out and splice in new steel instead.

Can you weld your own RV frame?

Rust prevention, yes. Structural welding, almost certainly not, and every source that covers this topic in depth says so plainly. RV frame specialists put it directly: take frame problems to a certified frame shop, not a general auto body shop and not your own welder unless you already have real fabrication experience.

The DIY-friendly part of this job is prevention. Wire-brushing or grinding loose surface rust and applying a rust converter, POR-15’s Stop Rust Kit runs around $25, a Fluid Film undercoating kit runs $20-$50, buys real years before rust becomes a structural problem. That’s a genuine afternoon project with $20-$100 in materials.

One experienced RVer with his own welding equipment found stress cracks where his trailer’s A-frame met the first crossmember and repaired them himself the same day he found them. He’s also logged far more miles than the average RVer and frequently boondocks on rougher roads than most people ever drive, which is exactly why he owned welding equipment in the first place. For an owner without that background, the honest answer is that frame welding carries real consequences if it’s done wrong: a bad weld on a load-bearing member is a safety issue every time the rig goes down the highway, not just a cosmetic miss.

Does insurance or warranty cover it?

Sometimes, and the line is the same sudden-versus-gradual distinction that governs every other water- and stress-related RV claim. A collision, a hard pothole impact severe enough to crack a weld, or debris strike that bends a rail can be a covered comprehensive or collision claim, subject to your deductible. Gradual rust-through gets treated as wear and deferred maintenance, and insurers deny those claims about as consistently as they deny gradual roof-leak claims.

Warranty coverage is thin. Lippert’s standard warranty is 1-year limited and non-transferable, meaning it doesn’t survive a change of ownership and doesn’t help most owners past the first twelve months regardless. Extended service contracts vary by provider on whether frame and chassis components are covered at all; check the extended warranty cost guide for what those contracts typically define as covered structural components before assuming a frame repair will be reimbursed.

Catching it before it’s a $5,000 problem

Frame inspections don’t get the same attention as roof or floor checks, but they should. Check your frame the same way you’d check lug nuts, spare tire pressure, or a water heater anode: on a schedule, not just when something feels wrong. Get underneath with a flashlight twice a year, before the camping season starts and again before winter storage, and look specifically at the A-frame-to-crossmember junction, spring hangers, and anywhere the frame shows surface rust or bubbling paint.

A crack caught early is a $150-$400 weld. The same crack, ignored through a season of towing on rough roads, spreads and turns into a $1,500-plus fish-plate job, or worse, propagates into an adjacent crossmember and turns into a sistering project. Rust follows the same logic: a wire brush and $25 in rust converter now beats a $1,500 crossmember replacement later, every time.

How frame cost compares to other RV structural repairs

Frame work sits in a similar cost neighborhood to major axle and suspension jobs, which makes sense since all three are chassis-level structural components. The axle replacement guide covers a related repair that often gets bundled with frame work when a shop already has the trailer up on stands with the wheels off.

Frame rust and subfloor rot frequently trace back to the same cause: water that got in through a failed roof seal or window gasket and worked its way down and through the structure over months or years. If you’re seeing frame rust, it’s worth checking the subfloor repair guide too, since the two often show up together on the same rig. And if the frame damage came with visible interior staining or a soft spot underfoot, the water damage repair guide covers the fuller remediation picture, including what insurance actually covers when a leak is the common root cause of both problems.
